RTS/Telex Equipment

  • RTS BP-325 Intercom Beltpack
  • Telex ADAM System
  • RTS/Telex Series 800
  • RTS/Telex MCE-325 user station
  • RTS 4030 IFB Beltpack

  • Top
    RTS BP-325 Line Connector
    pin #UseColor
    1Common/GNDShield
    2Channel #1 audio and 30vdc
    3Channel #2 audio

    Top
    verified-RTS BP-325 Loop/AUX Connector-PGM input mode
    pin #UseColor Uses the Rear Panel PGM Level control
    1Common/GNDShield
    2Non-inverting input
    3Inverting input

    Top
    verified-RTS BP-325 Loop/AUX Connector-Local Power mode
    pin #UseColor notes
    1Common/GNDShield
    212-24VDC
    3NC

    Top
    verified-RTS BP-325 STEREO Headset Connector
    pin #UseColor notes
    1mic signal lowShield
    2mic signal high
    3ear signal low
    4ear signal left
    5ear signal right

    Top
    verified-RTS BP-325 MONO Headset Connector
    pin #UseColor notes
    1mic signal lowShield
    2mic signal high
    3ear signal low
    4ear signal high
    ]
    Top
    verified-Telex KP98-7 4-pin Headset Connector
    pin #UseColor The HDST microphone input is balanced. To prevent headset cable MIC-EAR crosstalk, tie pin 1 to chassis ground. It is easiest to do this on the rear panel EXT HDSTconnector.
    1mic signal lowyel
    2mic signal highgry
    3ear signal lowgry
    4ear signal highred

    Top
    Telex KP98-7 5-pin Headset Connector
    pin #UseColor Pin 4 and 5 are tied at the headset connector
    1mic signal lowyel
    2mic signal highgry
    3ear signal lowgry
    4ear signal highred
    5ear signal hightie to pin 4

    Top
    verified-Telex KP98-7 9-pin Rear-Panel Headset Connector (DB-9F)
    pin #UseColor Tie pin 2 to pin 6 to unbalance the dyn. mic input.
    1Dyn. mic +
    2Dyn. mic shield
    3Carbon mic +-
    4Carbon mic Shield
    5Ear signal high
    6Dyn. mic -
    7HDST SW control
    8HDST SW common
    9Ear signal common

    Top
    4010M or 828 IFB Power Supply Input Connector
    pin #UseColor Low Numbered pin is Positive, High numbered pin is Negative.
    The chassis mount connector is Female
    1,26CH-1 N-INT
    2,27CH-1 INT
    3,28nc
    4,29CH-2 N-INT
    5,30CH-2 INT
    6,31nc
    7,32CH-3 N-INT
    8,33CH-3 INT
    9,34nc
    10,35CH-4 N-INT
    11,36CH-4 INT
    12,37nc
    13,38CH-5 N-INT
    14,39CH-5 INT
    15,40nc
    16,41CH-6 N-INT
    17,42CH-6 INT
    18,43nc
    19,44CH-7 N-INT
    20,45CH-7 INT
    21,46nc
    22,47CH-8 N-INT
    23,48CH-8 INT
    24,49nc
    25,50ncShield

    Top
    verified-Telex KP32, KP98-7, KP12, TIF951 Matrix Line Connector DB-9F
    pin #UseColor
    1DATA +
    2DATA -
    3GND, Shield Data
    4Station Output + (talk)
    5Station Output - (talk)
    6GND, Shield Audio
    7Station Input - (listen)
    8Station Input + (listen)
    9NC

    Top
    verified-RTS 803/802 Front Panel Headset
    pin #UseColor
    1mic signal lowShield
    2mic signal high
    3ear signal low
    4ear signal left
    5ear signal right

    Top

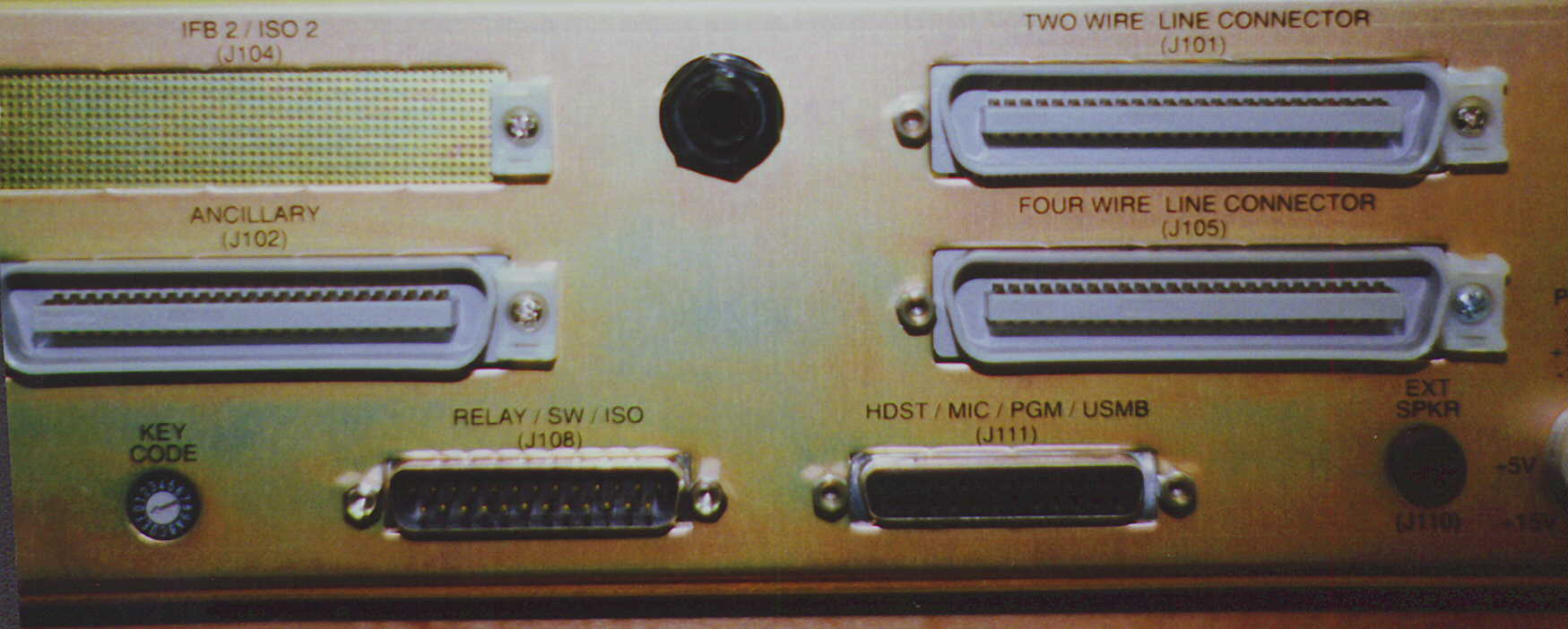

    RTS 803 DB-25 (J111) Connector
    pin #UseColor

    J111 is the female DB-25 connector on the right side of the lower part of the chassis. The USMB output is used to feed an RTS 4000 series IFB panel or it can be routed to a patchfield.

    1EXT HDST mic ground
    2EXT HDST Headphone gnd
    3EXT HDST Right Headphone high
    4Chassis ground
    5EXT Panel mic high
    6EXT carbon headset-common
    7EXT carbon headset-Headphone high
    8Digital ground
    9Program 1 high
    10Program 2 high
    11Chassis ground
    12Unswitched mic out high
    13Chassis ground
    14EXT HDST mic high
    15EXT HDST Left headphone high
    16Chassis ground
    17EXT Panel mic low
    18EXT Panel mic excitation
    19EXT carbon headset-mic high
    20NC
    21Program 1 low
    22Program 2 low
    23Chassis ground
    24Unswitched mic out low
    25Chassis ground

    Top
    RTS 803 DB-25 (J108) Connector
    pin #UseColor Male DB-25 connector. Notes
    1Relay 1 N.O.
    2Relay 1 N.C.
    3Relay 2 COM
    4Relay 3 N.O.
    5Relay 3 N.C.
    6Relay 4 COM
    7Relay 5 N.O.
    8Relay 5 N.C.
    9Relay 6 COM
    10XSW & YSW Common
    11EXT Switch YSW N.O.
    12EXT. ISO Control input N.O.
    13Bilat 15 Audio High
    14Relay 1 COM
    15Relay 2 N.O.
    16Relay 2 N.C.
    17Relay 3 COM
    18Relay 4 N.O.
    19Relay 4 N.C.
    20Relay 5 COM
    21Relay 6 N.O.
    22Relay 6 N.C.
    23EXT Switch XSW N.O
    24EXT. ISO Control input Common
    25Bilat 15 Audio Low

    Top
    RTS SAP-1626 Camera Connector DB-25F
    pin #UseColor FEMALE DB-25
    1common
    2common
    3common
    4common
    5common
    6common
    7common
    8common
    9common
    10common
    11common
    12common
    13NC
    14Camera 1 CH-1
    15Camera 2 CH-1
    16Camera 3 CH-1
    17Camera 4 CH-1
    18Camera 5 CH-1
    19Camera 6 CH-1
    20Camera 1 CH-2
    21Camera 2 CH-2
    22Camera 3 CH-2
    23Camera 4 CH-2
    24Camera 5 CH-2
    25Camera 6 CH-2

    Top
    RTS SAP-1626 25-Pair (Champ, 50-PIN Female)
    pin #UseXLR PIN
    26-50common
    1Out 1/11 CH-1
    2Out 1/11 CH-2
    3Out 2/12 CH-1
    4Out 2/12 CH-2
    5Out 3/13 CH-1
    6Out 3/13 CH-2
    7Out 4/14 CH-1
    8Out 4/14 CH-2
    9Out 5/15 CH-1
    10Out 5/15 CH-2
    11Out 6/16 CH-1
    12Out 6/16 CH-2
    13Out 7/17 CH-1
    14Out 7/17 CH-2
    15Out 8/18 CH-1
    16Out 8/18 CH-2
    17Out 9/19 CH-1
    19Out 9/19 CH-2
    19Out 10/20 CH-1
    20Out 10/20 CH-2

    Top
    RTS TW Line Connector 25-Pair (Champ, 50-PIN Female)
    PIN-# Use PIN-# Use
    1Out High CH-126Shield
    2
    Out High CH-227Shield
    3
    Out High CH-328Shield
    4
    Out High CH-429Shield
    5
    Out High CH-530Shield
    6
    Out High CH-631Shield
    7
    Out High CH-732Shield
    8
    Out High CH-833Shield
    9
    Out High CH-934Shield
    10
    Out High CH-1035Shield
    11
    Out High CH-1136Shield
    12
    Out High CH-1237Shield
    13
    Out 7/17 CH-138Shield
    14
    Out 7/17 CH-239Shield
    15
    Out 8/18 CH-140Shield
    16
    Out 8/18 CH-241Shield
    17
    Out 9/19 CH-142Shield
    18
    Out 9/19 CH-243Shield
    19
    Out 10/20 CH-144Shield
    20
    Out 10/20 CH-245Shield
    21
    Out 8/18 CH-246Shield
    22
    Out 9/19 CH-147Shield
    23
    Out 9/19 CH-248Shield
    24
    Out 10/20 CH-149Shield
    25
    Out 10/20 CH-250Shield

    Top
    RTS SSA-324 System/System Interface Four Wire Connector J103 DB-25F
    pin #UseColor The audio I/O on this connector are also duplicated on the TB-1 terminal block.
    1earth
    24-Wire Audio In Hi, System A
    34-Wire Audio Out Hi, System A
    44-Wire Audio In Hi, System B
    54-Wire Audio Out Hi, System B
    6Call Signal Ground (A)
    7DC Call Sig En GND (A)
    8Relay Contact NO (A)
    9Relay Contact COM (A)
    10RelayRelay NC (B)
    11Call Send GND (B)
    12DC Call Sig En GND (B)
    13NC
    14NC
    154-Wire Audio In Lo, System A
    164-Wire Audio Out Lo, System A
    174-Wire Audio In Lo, SystemB
    184-Wire Audio Out Lo, System B
    19Call Send Hi (A)
    20DC Call Sig En Hi (A)
    21Relay Contact NC (A)
    22Relay Contact NO (B)
    23Relay Contact COM (B)
    24Call Send Hi (B)
    25DC Call Sig En Hi (B)

    Top

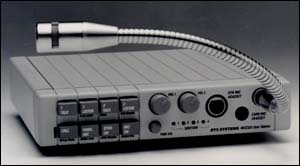

    RTS MCE-325 FP Headset Connector
    pin #UseColor
    For remote Mic on/off: short pin-1 to pin-6 to turn on the microphone.
    1HDST Mic LO (-)
    2HDST Mic HI Com.
    3Ear Common (LO)
    4Ear Left HI
    5Ear Right HI
    6Remote Mic On/Off

    Top
    RTS MCE-325 DB-25 Accessory Connector DB-25F
    pin #UseColor This female DB-25 connector has it all. The USMB output is used to feed an RTS 4000 series IFB panel mic signal in. On the 4001 IFB panel, use TB-2 pins 3 and 4 for line level input.
    1USMB -Hot Mic Out LO (-)
    2EXT Panel Mic Com.
    3Chassis Ground
    4HDST Mic HI
    5HDST Ear HI Left
    6Talk Key #1 Logic Out
    7Talk Key #3 Logic Out
    84W-A HI
    94W-B HI
    10Common
    11Common
    12ISO Logic
    13Ext +14 VDC in
    14USMB -Hot Mic Out HI (+)
    15EXT Panel Mic HI
    16HDST Mic HI
    17HDST Ear Common (LO)
    18HDST Ear HI Right
    19Talk Key #2 Logic Out
    20Talk Key #4 Logic Out
    214W-A LO
    224W-B LO
    23Ext +18 VDC in
    24Rem. Mic ON logic in
    25Speaker mute logic in.

    Top
    RTS MCE-325 External Speaker
    pin #UseColor DO NOT USE a Metal Shell Connector. This is a balanced speaker driver. Shorting either tip or ring to ground will result in a call to the Telex Service department.
    TipSpeaker amp + out
    RingSpeaker amp - out
    SleveNo connection.

    Top
    4030 IFB Beltpack
    pin #UseColor
    Line Conector
    1Line Commont
    2Channel 1
    3Channel 2
    Stereo Earpiece
    TipInterrupt
    RingNon-Interrupt
    SleveGround
    Mono Earpiece
    TipInterrupt
    SleveGround

    Top
    verified-Telex KP-32 Relay 1&2(DB-9M)
    pin #UseColor
    1N.C. Contact K1
    2Common K1
    3N.O. Contact K1
    4N.C. Contact K2
    5Common K2
    6N.O. Contact 2
    7+5V DC
    8Ground
    9+5V DC

    Top
    verified-Telex KP-32 Relay 3&4(DB-9M)
    pin #UseColor
    1N.C. Contact K3
    2Common K3
    3N.O. Contact K3
    4N.C. Contact K4
    5Common K4
    6N.O. Contact 4
    7+5V DC
    8Ground
    9+5V DC

    Top
    verified-Telex KP-32 Opto 1-4 Input(DB-9M)
    pin #UseColor Tie any switch input to ground to activate that input (pin 1-4)
    1Input 1 GND
    2Input 2 GND
    3Input 3 GND
    4Input 4 GND
    5GND
    6Switch Contact Input 1
    7Switch Contact Input 1
    8Switch Contact Input 1
    9Switch Contact Input 1

    Top
    verified-Telex KP-32 OC 1 & 2(DB-9M)
    pin #UseColor .
    1GND OC1
    2Emitter OC1
    3Collector OC1
    4GND OC2
    5Emitter OC2
    6Collector OC2
    7+5V DC
    8NC
    9+5V DC

    Top
    verified-Telex KP-32 Rear-Panel Headset Connector (DB-9M)
    pin #UseColor Tie pin 1 to pin 9 to unbalance the dyn. mic input.
    1GND
    2nc
    3nc
    4nc
    5Balanced Dynamic Mic Input +
    6GND
    7Headset Listen Out Left
    8Headset Listen Out Right
    9Balanced Dynamic Mic Input -

    Top
    verified-Telex KP-32 Footswitch /Speaker DB-9M
    pin #UseColor .
    1GND
    2Speaker (-)
    3GND
    4nc
    5Foot Switch
    6Speaker (+)
    7nc
    8nc
    9GND

    Top
    verified-Telex KP-32 External Microphone Input XLR-3F
    pin #UseColor .
    1Shield
    2DC Bias and Audio (+)
    3GND

    Top
    verified-Telex KP-32 Balanced Microphone Output XLR-3M
    pin #UseColor .
    1Shield
    2Audio (+)
    3Audio (-)

    Top
    ADAM XCP-MC J9&J10 AZEdit 2&3
    pin #UseColor Both J9 and J10 are the same pin-out. Note non-standard RS-232 pins
    1not used
    2GROUND
    3RS232 RX
    4not used
    5not used
    6not used
    7GROUND
    8RS232 TX
    9not used
    Top
    ADAM XCP-MC 3 Accessory
    pin #UseColor J3 to accessory wiring.
    1
    Top
    ADAM Keypanel RJ-11 Connection
    pin #UseColor J3 to accessory wiring.
    1
