Wiring Standards


  • Clear-Com Matrix Products

  • Top
    Clear-Com ICS-2002/3 Front Panel Headset
    pin # Use Color
    1 mic signal low Shield
    2 mic signal high
    3 ear signal low
    4 ear signal high

    Top

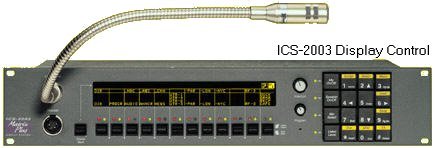

    ICS-2003Matrix Connector
    pin # Use Color notes
    1 + Transmit Data
    2 + Audio Talk
    3 + Audio Listen
    4 + Receive Data
    5 GND
    6 Slave ID 0
    7 GND
    8 Slave ID 3
    9 - Transmit Data
    10 - Audio Talk
    11 - Audio Listen
    12 - Receive Data
    13 GND
    14 Slave ID 1
    15 Slave ID 2

    Top

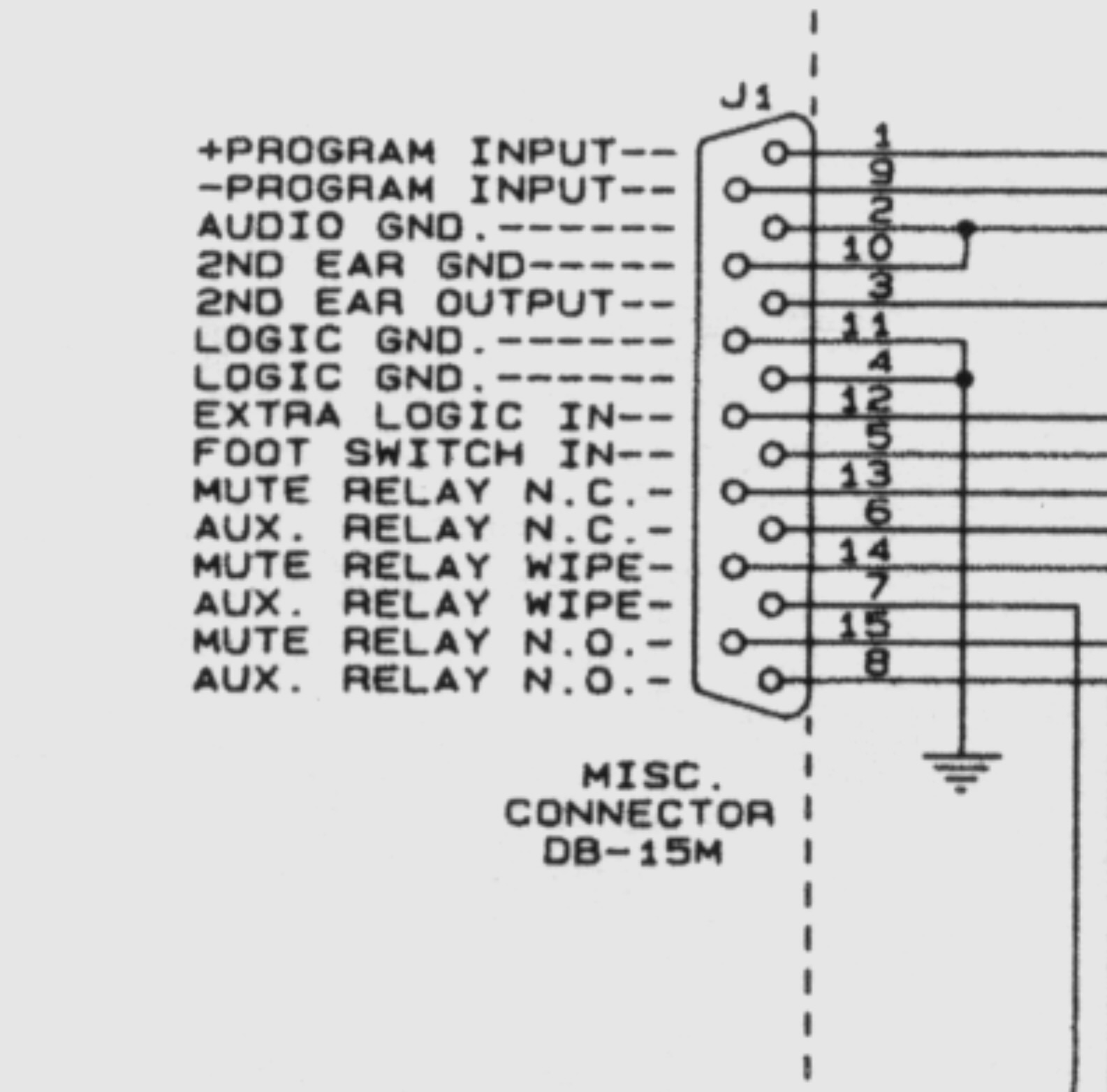

    ICS-2003 Clearcom Miscellaneous Connector
    pin # Use Color
    1 + Program Input
    2 Audio GND
    3 2nd Ear Output
    4 Logic GND
    5 Foot Switch In
    6 Aux Relay N.C.
    7 Aux Realy Common
    8 Aux Relay N.O.
    9 - Program Input
    10 2nd Ear GND
    11 Logic GND
    12 Extra Logic In
    13 Mute Relay N.C.
    14 Mute Relay Common
    15 Mute Relay N.O.

    Top
    ICS-2003 Clearcom Aux Audio I/O Connector (Optional)
    pin # Use Color notes
    1 Local SA Out -
    2 GND
    3 SA Relay N.O.
    4 SA Relay Common
    5 SA Relay N.C.
    6 Line Output -
    7 GND
    8 HOT MIC Out +
    9 Local SA Out +
    10 GND
    11 GND
    12 GND
    13 Line Output +
    14 GND
    15 HOT MIC Out -

    Top
    Verified-Clear-Com AB-100 6-pin (Factory)Corrected on 3/12/14
    pin # Use Color notes
    1 Mic signal low (-)
    2 Mic signal high (+)
    3 Headphone Common
    4 Ear Signal High-Left
    5 Ear Signal High-Right
    6 Microphone Shield

    Top
    Clear-Com AB-100 7-pin Headset (TNN Modification)
    pin # Use Color notes
    1 Mic Signal shield Shield
    2 Mic Signal Low (-) Red
    3 Mic Signal High (+) Blu
    4 Ear Signal Low (-) Shield
    5 Ear Left Signal(+) Red
    6 Ear Signal Low (-) Mult to pin 4
    7 Ear Right Signal(+) Clear

    Top
    Clear-Com Matrix Connection RJ-45 (Updated on 10/20/16)
    pin # Signal Color Adapter Pin This pinout is for the Frame end.
    1 422 Data (+) InOrange/White
    2 422 Data (-) InOrange
    3 Audio Input (+)Green/White XLR Female Pin-2
    4 Audio Output (+)Blue XLR Male Pin-2
    5 Audio Output (-)Blue/White XLR Male Pin-3
    6 Audio Input (-)Green XLR Female Pin-3
    7 422 Data (+) OutBrown/White
    8 422 Data (-) OutBrown

    Top
    IMF-1 Interface Chassis Matrix Connection DB-15F
    pin # Use Color notes
    1 NC
    2 + Audio Talk (output)
    3 + Audio Listen (input)
    4 Call Send Return
    5 Ground
    6 Interface Sel-0
    7 Ground
    8 Interface Sel-3
    9 NC
    10 - Audio Talk (output)
    11 - Audio Listen (input)
    12 GND
    13 Call Send
    14 Interface Sel-1
    15 Interface Sel-2

    Top
    FOR-22 Breakout Cable (D-SUB-9F to/from XLR)
    pin # Use Color
    1 Audio Output +
    2 Audio Input +
    3 Logic Input +
    4 Relay Norm Closed
    5 Relay Norm Open
    6 Audio Output -
    7 Audio Input-
    8 Logic Input
    9 Relay Wiper/Common

    Top
    ICS-2003Matrix Connector
    pin # Use Color notes
    1 + Transmit Data
    2 + Audio Talk
    3 + Audio Listen
    4 + Receive Data
    5 GND
    6 Slave ID 0
    7 GND
    8 Slave ID 3
    9 - Transmit Data
    10 - Audio Talk
    11 - Audio Listen
    12 - Receive Data
    13 GND
    14 Slave ID 1
    15 Slave ID 2
